How Enterprise AI Deployment Actually Gets Architected From Scratch
What the vendor pitch leaves out. What the practitioner learns the hard way.
Most organizations arrive at the AI conversation carrying two things. A budget that just got approved. And a vendor demo somebody liked in a conference room three weeks ago.
What they do not have is an architecture.
That gap, between the approval and the actual system, is where most enterprise AI projects spend the rest of their lives. Not cancelled. Not succeeded. Just suspended in a permanent state of almost working, consuming resources, generating status reports, and never reaching the production environment that was always the point.
I have built data and AI systems inside financial services, healthcare, manufacturing, and federal government for sixteen years. I have watched this pattern repeat in organizations that had every resource they needed and still could not close the distance between the demo and the deployment.
What follows is the honest account of how it actually gets done.

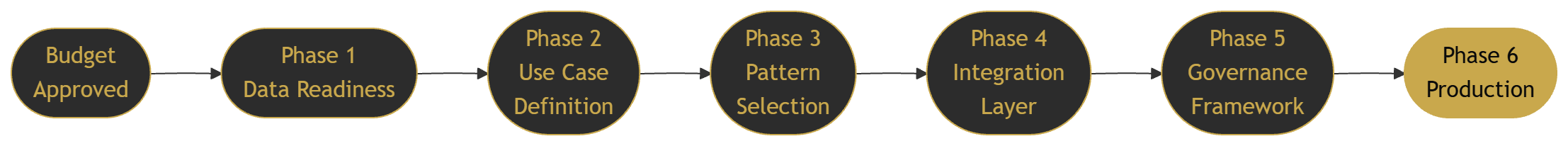

There are six phases. They are sequential because the failure mode of every skipped phase is the same. The problem does not disappear. It moves downstream, where it costs more and takes longer and belongs to someone else to explain.
Phase 1: Data Readiness
You do not begin with the model. You begin with the data.
This is the instruction most organizations receive and most organizations ignore, not because they are careless but because the pressure to show progress runs faster than the discipline to build correctly. A vendor demo is visible. A data audit is not. One impresses a steering committee. The other protects the deployment eighteen months from now when the system starts producing outputs no one can explain.
Every AI system is downstream of its data. The model does not generate intelligence out of nothing. It reflects the structure, the quality, and the gaps of whatever you feed it. Which means before you select a model, before you choose a cloud provider, before you write a single line of integration code, you need to know what your data actually looks like.

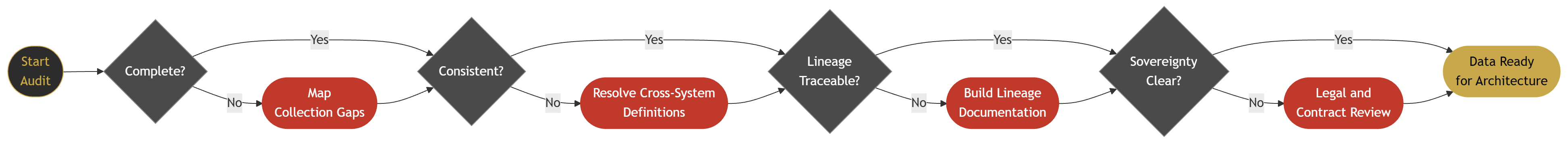

A real data readiness audit examines four things.
Completeness. Is the data you need actually being captured, or are there collection gaps that will make your model unreliable at the precise moment the stakes are highest.
Consistency. Does the same concept carry the same meaning across your systems. In a financial services environment, the word “customer” can hold six different definitions depending on whether you are looking at origination, servicing, collections, or the CRM. A model trained across those systems without resolving that ambiguity will produce confident, well-formatted outputs that are operationally worthless.
Lineage. Can you trace where your data came from, how it was transformed, and who touched it. This matters when an auditor asks you to explain why the system made a specific decision on a specific account on a specific date. “The model decided” is not a compliant answer anywhere that risk management has regulatory exposure.
Sovereignty. Who owns the data, where does it physically live, and what happens to it when it travels to a third-party inference endpoint. This is a contractual and regulatory question. It determines which vendors you can legally use with which data sets before a single API call is made.
What you will find: Most organizations discover during a real data audit that they are less AI-ready than their technology roadmap assumed. This is not a failure. It is the most valuable output of the process, because it tells you exactly what infrastructure needs to exist before the AI layer will hold any weight.
Phase 2: Use Case Definition
Vague use cases produce vague systems. And vague systems produce the kind of outcome that ends a program budget.
“Use AI to improve customer experience” is not a use case. It is a goal statement dressed as a technical requirement. The architecture team cannot build against it. The governance team cannot evaluate it. The business stakeholder cannot hold anyone accountable to it. It will survive every steering committee meeting because it means nothing specific enough to be wrong.
This is a use case:
Reduce first-contact resolution time for tier-one servicing inquiries by 30 percent, using an AI-assisted routing and response system integrated with the CRM and knowledge base, with human review required before any output reaches the customer.
That version tells you the data you need. The systems that require integration. What the model must produce. Where human judgment stays in the loop. And the number that tells you whether it worked.
Every use case needs five components before architecture design begins.
The trigger. What event or condition initiates AI involvement.
The input. What data the system receives at the point of inference.
The action. What the system produces. A prediction. A classification. A recommendation. A generated output. An automated decision.
The constraint. What the system cannot do. What cases are out of scope. What requires human review before action is taken.
The success metric. The specific measurable outcome that determines whether the deployment is functioning.
What you will find: If you cannot write all five components on one page, the use case is not ready. Narrow it until you can.
Phase 3: Architecture Pattern Selection
The model is not the first decision. The pattern is.
This is where most enterprise AI conversations get redirected into vendor selection debates before the architectural question has been answered. Which model to use is a downstream decision. The upstream decision is what kind of system you are building. The pattern determines the model. Not the other way around.
There are four primary patterns.
Retrieval-Augmented Generation is the most common pattern for enterprise knowledge work. Your proprietary content lives in a vector database or search index. A user query triggers a retrieval step that surfaces relevant documents or data chunks. Those chunks travel to the model as context alongside the query. The model synthesizes and generates. It does not need to memorize your data. It needs to find and use it.
This pattern preserves data sovereignty because your content stays inside your infrastructure. It reduces hallucination risk because outputs are grounded in retrieved material. And it allows you to update the knowledge base without retraining anything.
Fine-tuning is appropriate when your use case requires the model to internalize a specific style, terminology set, or decision logic that prompting and retrieval cannot achieve alone. You continue training a base model on your proprietary examples. This is computationally expensive, requires careful dataset curation, and creates an ongoing governance obligation. You now own the behavior of that model. You are accountable for documenting it, evaluating it, and retraining it when your data or requirements change.
Fine-tuning gets recommended more often than it should be. Test whether a well-designed RAG pipeline with a strong system prompt solves the problem before you commit to the training cost.
Agentic architectures are for use cases where the system must take a sequence of actions rather than produce a single output. The agent plans, executes steps, uses tools, checks outputs, and adjusts course. This is the right pattern for complex workflow automation and for processes where the path to the output matters as much as the output itself. It is also the highest governance risk pattern in this list. An agent taking autonomous actions across production systems requires a substantially more rigorous oversight architecture than a model generating text for a human to review.
Batch inference is the pattern most enterprises already have deployed without recognizing it as AI architecture. Running a model against a large dataset on a schedule to generate predictions, scores, classifications, or recommendations that load into a downstream system. Credit risk scoring. Document classification at volume. Anomaly detection on transaction logs. The architectural priorities here are compute cost management, model drift monitoring, pipeline reliability, and the governance process for consequential decisions made at scale.

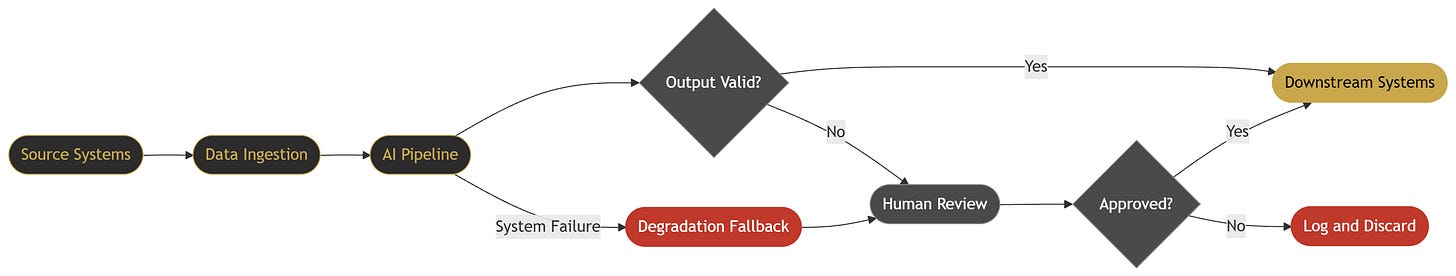

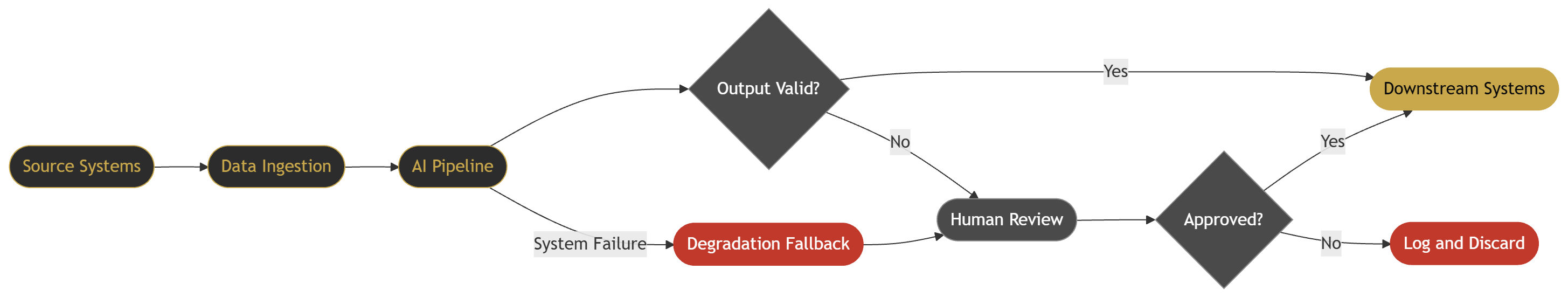

Phase 4: The Integration Layer
A system that produces excellent outputs that no one ever sees is not a deployed AI system. It is a prototype that found a way to stay alive.
The integration layer is where AI projects earn the right to be called production systems or die in the last hundred yards.
Three questions define this layer.
How does data travel from your existing systems into the AI pipeline in a way that is reliable, secure, and traceable. How do the outputs travel back into the workflows, interfaces, and downstream systems where people and processes will act on them. And what happens when something breaks.
That third question is the one most architecture reviews skip. In a production enterprise environment, failure is not a theoretical concern. It is a scheduled event. Every AI deployment needs a defined degradation strategy before it goes live. What does the system do when the model layer is unavailable. What does the human fallback process look like. Who owns the decision to invoke it.

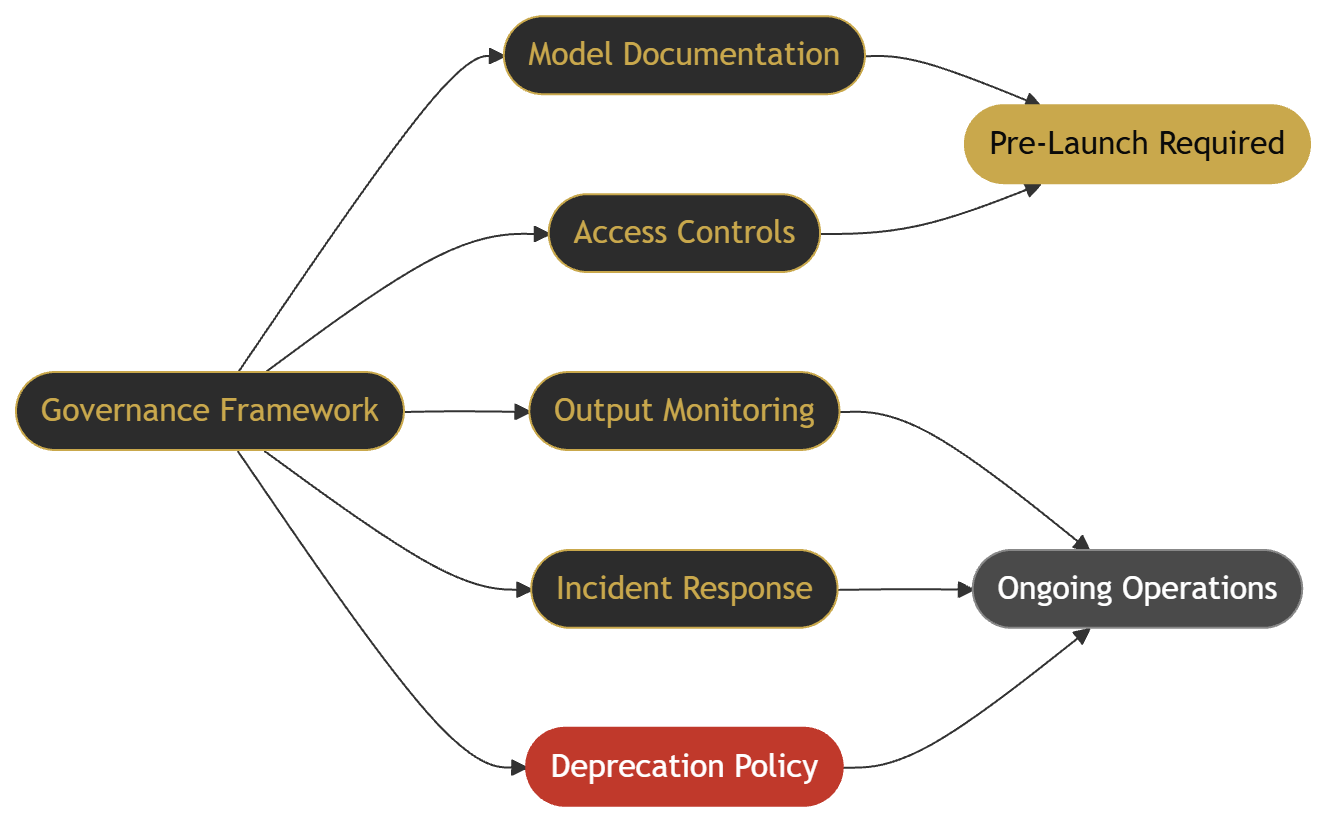

Phase 5: Governance Framework
Governance is not a post-deployment audit. It is a design constraint.
The organizations that treat governance as a compliance exercise to schedule after launch are the organizations that discover, eighteen months into production, that the architectural decisions which determine what governance is even possible have already been made and cannot be undone without rebuilding the system.
Governance architecture covers five domains and all five need to be designed in parallel with the technical build, not after it.
Model documentation. What the model does, what data it was trained or grounded on, what it is not designed to handle, and what its known failure modes are. This needs to exist before the system goes live.
Access controls. Who can query the system, who can see its outputs, who can modify its configuration, and who can override its decisions.
Output monitoring. A live framework for tracking what the system is actually producing at volume. Model drift is real. A system that performs well on day one can degrade quietly over months as the distribution of inputs shifts away from what it was evaluated against.
Incident response. What happens when the system produces a harmful, biased, or anomalous output that reaches a real user. Who gets notified. What the remediation path is. How the event gets documented.
Deprecation policy. What happens when the underlying model gets retired by the vendor. This is the governance gap almost no organization has addressed. Model deprecation is the new vendor lock-in, and it arrives without warning.
Phase 6: Production Deployment
Production is not a destination. It is a starting condition.
The system that goes live is not the system you will be running in twelve months. The inputs will shift. The user behavior will surprise you. The model the vendor promised is available indefinitely will get deprecated on a timeline you did not control. The regulatory environment the compliance team evaluated the system against will change because it always does.
What separates an enterprise AI deployment that survives contact with production from one that doesn’t is not the quality of the initial build. It is whether the team that built it designed for change from the beginning.
That means instrumentation on everything from day one. Logging every inference, every input distribution shift, every output that gets flagged or overridden by a human reviewer. Not because you expect a crisis. Because the data you collect in the first ninety days of production is the only honest evaluation of whether your architecture actually holds.
It means a monitoring cadence with real teeth. Not a quarterly review. A weekly look at output quality metrics, a monthly model performance evaluation against the success metric you defined in Phase 2, and a clear threshold that triggers a retraining or redeployment process.
And it means keeping the people who understand the domain in the loop. The biggest single risk in an enterprise AI deployment is not the model producing a wrong answer. It is the organization losing the institutional knowledge required to recognize when the model is producing a wrong answer at scale.
What All Six Phases Have in Common
None of them begin with the model.
Every phase begins with a question about your organization. Your data, your use case, your integration constraints, your governance capacity, your production readiness. The model is the last component to be specified because it is the component most likely to change and the one that depends most completely on everything that came before it.
The organizations that deploy AI successfully are not the ones that moved fastest. They are the ones that refused to skip the phases that don’t look like progress until the ones that do stop working.
That is the whole of it.
